WALBRO F90000295 535LPH HIGH-FLOW FUEL PUMP KIT 900HP

$225.95

In Stock


Description

A high-flow upgrade for the super-popular 525, the Walbro 535 High-Flow In-Tank Fuel Pump offers increased flow with the removal of the internal check valve. Ideal for those high-power boosted applications where the 460 falls short.

Genuine Walbro F90000295 535LPH in-tank High-Pressure Fuel Pump Kit -  flows up to 600-900hp, ideal for boosted applications. A popular upgrade for high-performance, boosted rotary applications as well as many late-model vehicles, offering a drop-in install with minor cradle mods.

Compatible with all standard unleaded fuels & E85

*Please Note: The 535 pump does not have inbuilt check valves so separate units will be required when running multiple pumps.

What's included:

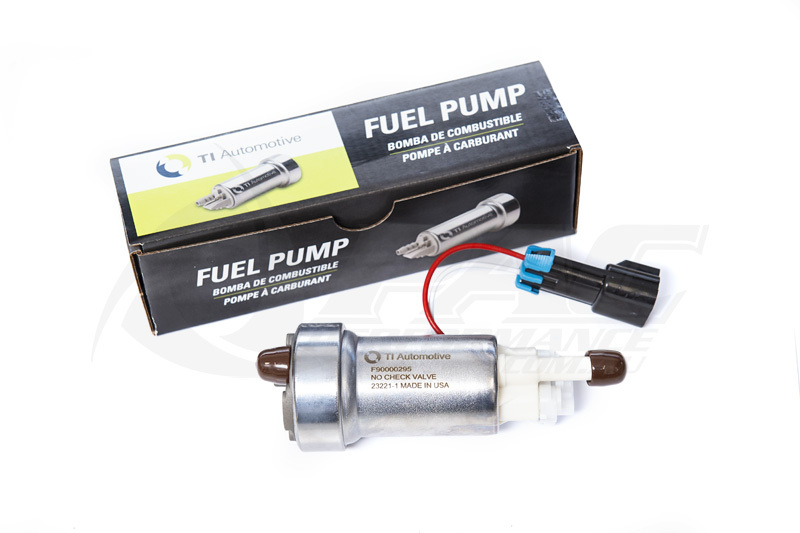

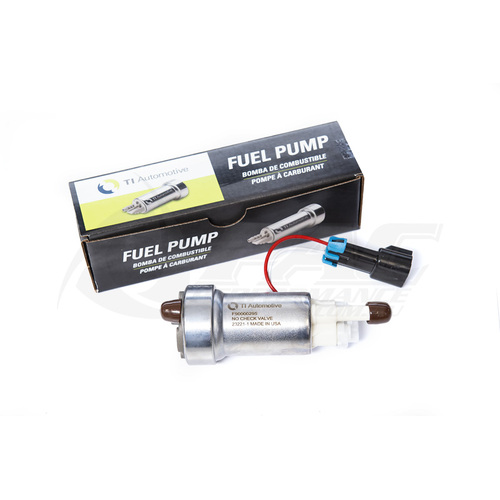

- Genuine Walbro F90000295 535 Fuel Pump
- Pickup filter
- Wire harness

Applications:

- Universal
- 12A, 13B, 20B, 26B
- Ford BA, BF, FG, FG X Falcon & XR6 Turbo
- Holden Commodore VT, VX, VY, VZ, VE, VF
- Subaru WRX
- Nissan Skyline, Silvia, 180SX

Specifications:

- Common names: Walbro 535, Walbro 540 High Pressure, Hellcat
- Flow rate: 540lph @ 13.5v (3 bar)
- E85 Compatible: Yes
- Max current draw: 25A (Make sure your wiring can handle this beast!)
- Body Diameter: 39mm / 50mm
- Length: 131mm
- Fuel Outlet Diameter: 11mm OD (10.8 – 9.1mm)
- Pressure Relief: 112psi (see other items for 112psi high-pressure version)
- Check Valve: No (see other items for 525 Hellcat pump with check valve)

Specifications

SKU PAC-F90000295
