MOTEC PDM15 POWER DISTRIBUTION MODULE

CALL FOR PRICING -03 9354 7242

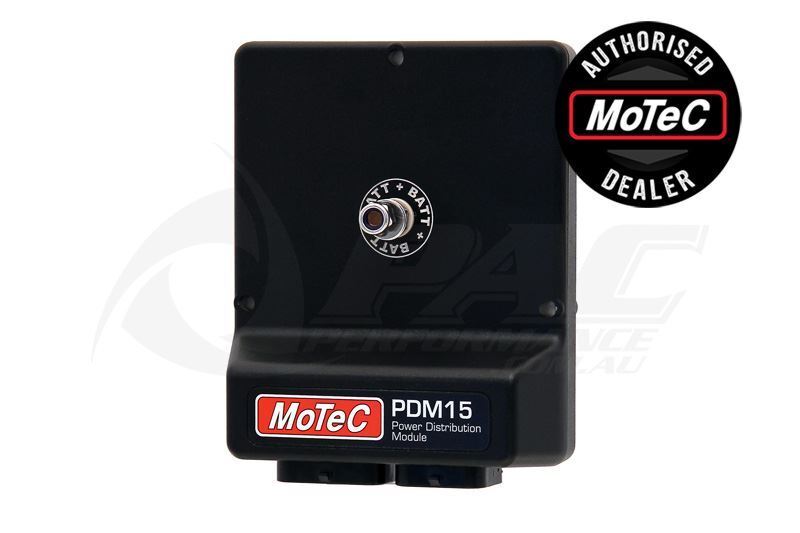

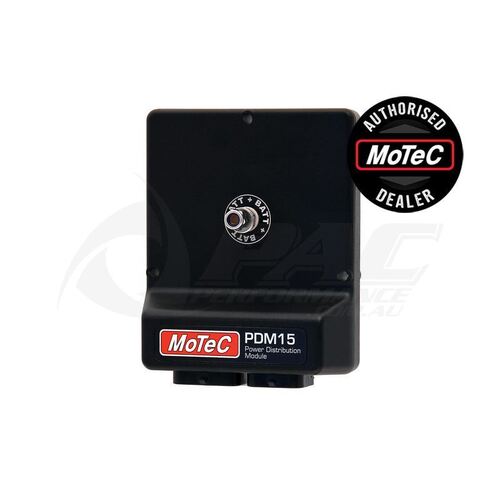

Developed to simplify your vehicle's electrical system & provide additional power & control to the user, MoTeC’s range of Power Distribution Modules, or PDMs as they are commonly referred to as, replace conventional relays, fuses and circuit breakers and provide electronically switched power to the various electrical systems in the vehicle such as motors, lights and solenoids, and electronic devices such as ECUs and data acquisition systems. This not only simplifies your vehicle's wiring immensely, it also reduces weight while increasing reliability.

The MoTeC PDM15 is a 15-channel module with 8 x 20A outputs (20 A continuous, 115 A transient typical and 7 x 8A outputs (8 A continuous, 60 A transient typical), with each output over-current, short circuit and thermal overload protected.

A total of 16 inputs are available and the PDM15 can provide full diagnostic information, including output currents and voltages, input voltages, and error status, transmitting diagnostic information via CAN to a display or data logging device or monitoring directly on a PC.

Key Features:

• Simplify your vehicle's electrical system & provide additional power & control
• Replaces conventional relays, fuses and circuit breakers
• Provides electronically switched power to the various electrical systems in the vehicle
• Reduces weight from unnecessary components & wiring & increases reliability
• Provides full diagnostic information, including output currents and voltages, input voltages, and error status
• 15 Outputs & 16 Inputs
• Ideal for competition vehicles but easily adapted into other applications including street car

Specifications:

Outputs

• 8 x 20 A outputs - 20 A continuous, 115 A transient (typical)
• 7 x 8 A outputs - 8 A continuous, 60 A transient (typical)

Inputs

• 16 x Switch inputs

Communications

• 1 x CAN

Diagnostic Information

• Output current and voltages
• Input voltages
• Error status

Connections

• 1 x 34 pin waterproof connector
• 1 x 26 pin waterproof connector
• 1 x M6 stud

Dimensions & Weight

• Case size 108 x 128 x 39 mm
• Weight 260 grams

***Please note - This PDM is a special order item, please allow 2 to 4 weeks for assembly if not on shelf at time of your order***
