MOTEC C1212 RACE DISPLAY KIT

*PLEASE CONTACT US ON 03 9354-7242 FOR PRICING*

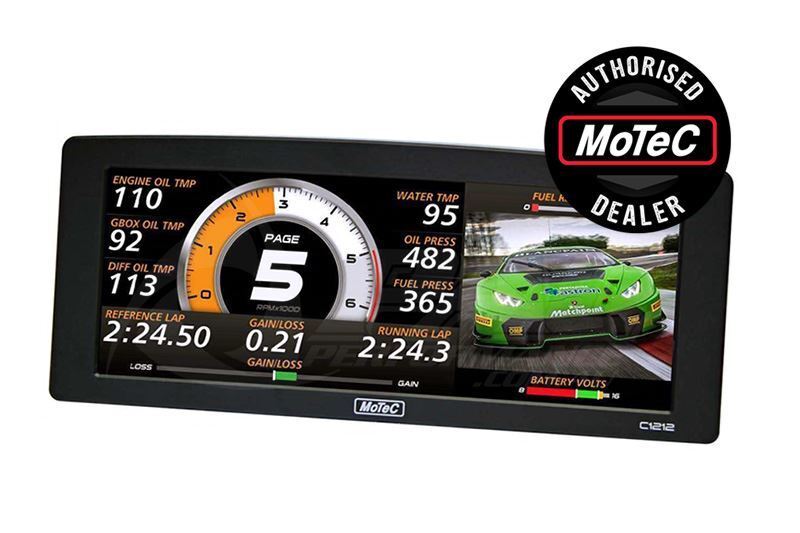

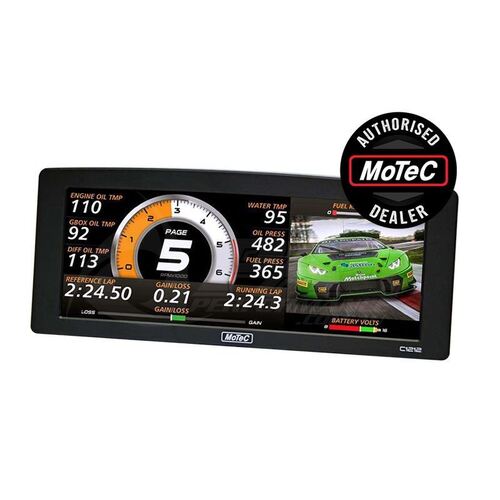

With it's impressive high-resolution, full colour 1280 x 480 display, the MoTeC C1212 has been designed with amazing functionality and provides all the benefits you would expect from a highly-sophisticated dash display plus, full data logging capabilities and auxiliary control in one stylish, user-friendly device.

Like the smaller C127 display, the C1212 also features a composite video input as standard (e.g. for a rear vision camera), and USB Logging to a removable storage device as an optional upgrade.*

Measuring up at a whopping 311mm (approx. 12 inches), the ultra-bright screen is vibrant and anti-reflective, making it easy to view in direct sunlight. Numerous selectable layouts are supplied with configurable channels, labels and colour schemes. Or, for the flexibility to treat your screen as a blank canvas and design your own layout with unique graphics, sponsor logos, custom icons and gauges, opt for the Display Creator upgrade.

The C1212 features 48 user-defined alarms, for parameters like Low Oil Pressure, Low Fuel, Fastest Lap etc... Programmable overrides which are particularly useful for showing values such as lap times with all layouts include one or two zero-centric, multi-purpose bar graph/s for Lap Gain/Loss, Fuel Level, G-Force (Lat or Long), Steering Angle or other configurable channels able to be disabled or enabled as required.

Three factory programmable 'pages' enable users to tailor layouts for different scenarios, for example, Dyno, Qualifying, Race, Driver 1/Driver 2 and so on, which ensures only the most relevant information is displayed at any given time.

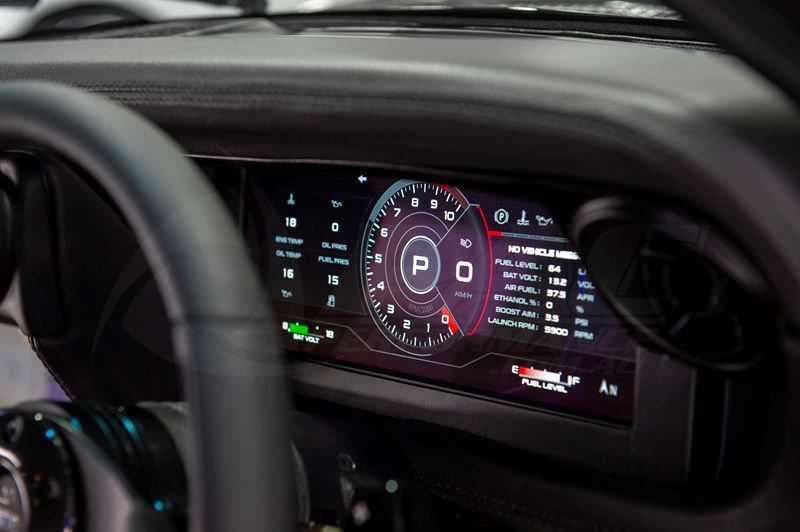

For a clean & secure mounting of your new display, custom moulded C1212 Dash Fascias can be made to suit RX2, as seen above as well as RX3 - Contact us for details & pricing.

Available Upgrades

Logging:

Logging Level 1 upgrade allows for the recording of input data (e.g. from sensors and ECUs) to the C1212's internal 120 MB logging memory. It includes use of MoTeC's world class i2 data analysis software. The advanced version, i2 Pro, can be used by purchasing the Pro Analysis Upgrade or a Feature Licence.

I/O Upgrade:

This upgrade activates additional C1212 inputs and outputs. It allows for:

• Wiring of sensors into the C1212 using either a custom loom or MoTeC's pre-wired C1212 I/O Loom. This professional quality terminated loom adds 6 analogue voltage inputs and 2 analogue temperature inputs.
• Use of 2 digital and 3 speed inputs. These are already pre-wired into the button lead of the C1212 Terminated Loom.
• Use of 4 auxiliary outputs; these will require custom wiring.

Display Creator:

The Display Creator upgrade allows users to design custom graphics and screen layouts for display on the C1212 screen, tailoring the look and functionality to a specific application. Designs can incorporate images, logos, icons, colour themes and creative gauge ideas.

The Display Creator software is free to download and experiment with, but the upgrade must be enabled in order to send screen configurations to the device.

FEATURES

General

• Largest screen in MoTeC's range of Colour Displays
• Full colour display, logger and controller all-in-one eliminates the need for separate devices (I/O and logging optional
• Impressive 311mm full-colour LCD screen (approx 12") - ultra-bright, high resolution and anti-reflective for easy viewing, even in direct sunlight
• Configurable channels and labels allow comprehensive customisation within the supplied layouts
• Display Creator upgrade enables full customisation of the display graphics, including imported images, logos, custom icons, tailored screen layouts, creative gauges and more.
• Supports Wideband Lambda from MoTeC PLMs or LTCs, using Bosch LSU or NTK UEGO 5 wire sensors
• Can be used standalone or in conjunction with other electronic devices including MoTeC CAN-based Expanders

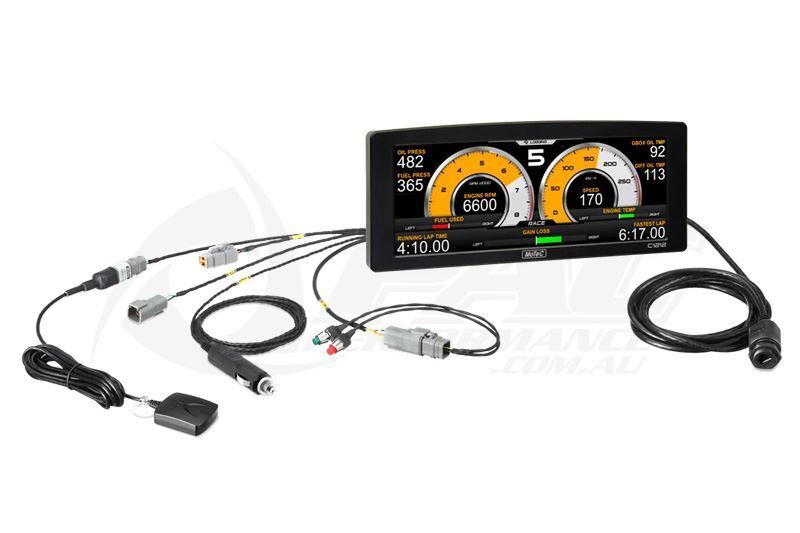

• Also available: cost-effective C1212 Race Kits which include a plug-in loom with power adaptor, buttons, GPS and optional ECU adaptors.
• Display and Logging Kits available

Logging and Analysis

• Optional 120 MB internal data logging - can be enabled at the time of purchase or later using a convenient password activation
• A further logging upgrade is available, this enables USB logging
• Fast download via Ethernet
• Accommodates over 300 channels derived from a mixture of analogue and digital inputs, RS232 and CAN data channels (optional I/O upgrade required for analogue and digital inputs)
• Configurable to use sensors from some existing engine management systems, including factory ECUs via OBD-II (adaptors required, sold separately)
• Includes i2 Standard data analysis software (i2 Pro available as an upgrade)

Display

As standard:

• Numerous selectable layouts supplied with a multitude of colour options
• Configurable channels, measurement units and warnings
• 48 user-defined alarms, for example, Low Oil Pressure, Low Fuel, Fastest Lap
• Programmable overrides - particularly useful for showing values such as lap times
• All layouts include one or two zero-centric, multi-purpose bar graph/s for Lap Gain/Loss, Fuel Level, G-Force (Lat or Long), Steering Angle or other configurable channels
• Can be turned on or off
• Three programmable 'pages' enable users to tailor layouts for different scenarios, for example, Dyno, Qualifying, Race, Driver 1/Driver 2
• Ensures only the most relevant information is displayed at any given time
