HEAVY DUTY TRANSMISSION COOLER PACKAGE

Keeping your automatic transmission cool is of utmost importance, especially in high-performance or heavy driving conditions. To combat rising trans temps, we've pieced together a universal Heavy Duty Transmission Cooling Kit comprising of proven components that we've tried and tested over the years.

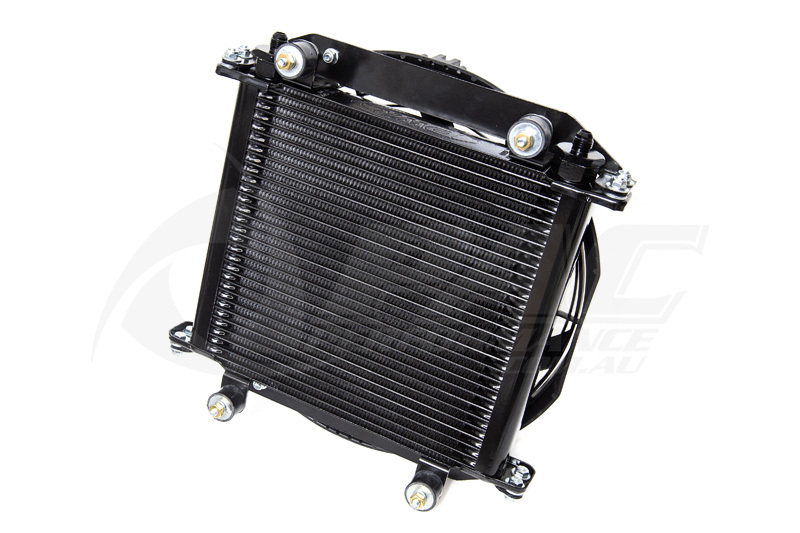

The ready-to-bolt-up kit is based around a large, 28-row, 37mm plate & fin core that offers a great balance between performance and compact size. With -10 orb outlets, it's easily adapted to steel braided line and AN fittings. -6 adaptors are supplied with the package.

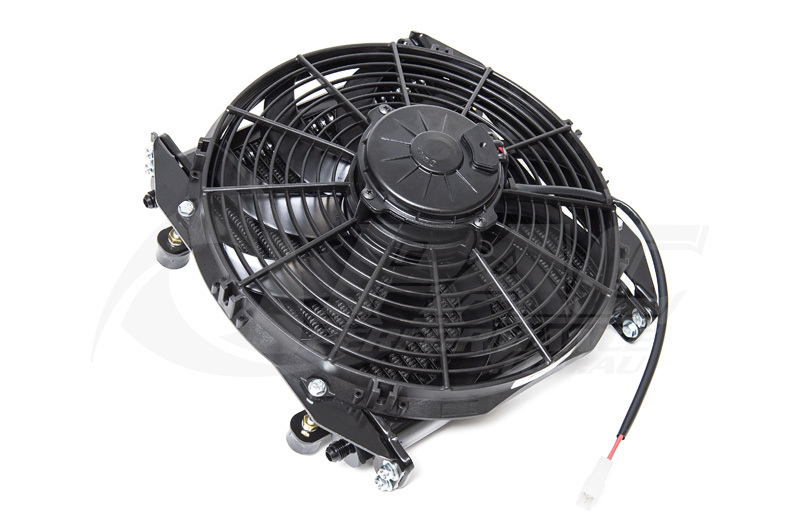

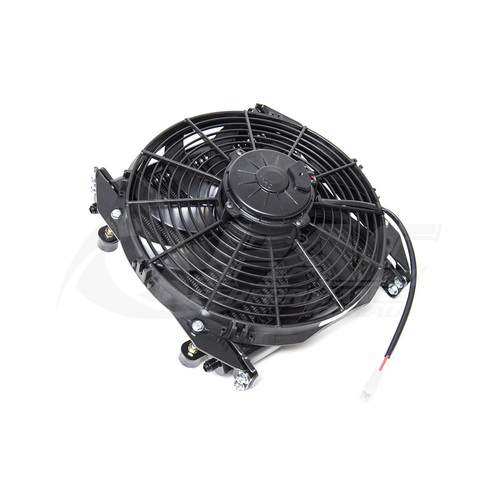

A solid performer on its own in many applications, due to our recommended positioning of the core on our Mazdas with limited space at the rear of the car, we chose to combine it with a high-quality 12" electric fan to further improve cooling, even while the car is stationary. For example, when staging at the drag strip or on the trans brake - A time when your transmission is under an extreme amount of stress.

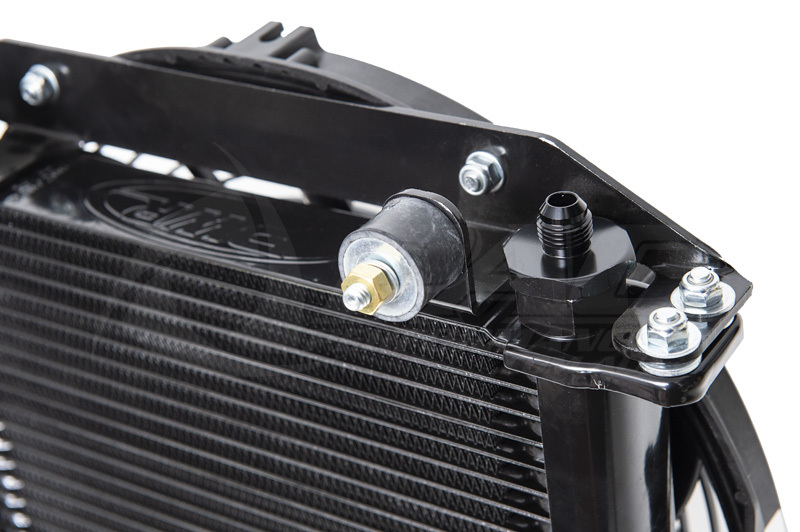

When mounting the cooler, it is important to do so with the proper precautions so as to reduce the chances of damaging the core due to vibration etc... A set of anti-vibration mounts is included in the kit to ensure a secure mount whilst also allowing for an acceptable amount of play.

Key Features:

- Complete setup, ready to bolt in

- Proven performance in highly-stressed applications

- Large 28-row, tube & plate core provides efficient cooling under high loads

- Pressure tested to 600psi.

- -10 Orb to -6AN fittings included

- Ideal for racing and heavy-duty applications

- H/Duty 225W 12V 12" Fan

- Custom mounting bracket makes for easy installation

- Anti-vibration mounts provided

- High-quality Australian-made core - Not cheap Chinese knock-offs



Applications:



- Universal

- High-performance vehicles

- Tow Cars

- 4WD

- Can also be used as an engine oil cooler



Dimensions:



Cooler Only - 280 x 256 x 37mm

Cooler / Fan & Mounts - 340mmx320mmx150mm
