FD RX7 COMPLETE E85 FUEL SYSTEM PACKAGE

The most comprehensive and only complete bolt-in fuel system upgrade of its kind on the market for the FD platform, this FD RX7 Complete E85 Fuel System Package is the ultimate DIY kit, providing all the gear you need to upgrade your FD's fuel system, ready for E85 and big HP!

The result of many hours of successful in-house R&D & testing, this package has been developed as a 'direct bolt-in upgrade' in every sense of the term, with the setup utilising all factory mounting points on the car to not only keep the installation neat but also to make it as DIY friendly and hassle-free as possible.

Starting out with our popular 80L FD Fuel Tank Upgrade featuring three Walbro 346 in-tank fuel pumps, new fuel level sender and custom Fuel Filler Neck Kit, we've then expanded the setup to cover the whole install, from pumps to the injectors and everything in between - all trusted, proven components that are the same as we use on our in-house builds at Pac HQ.

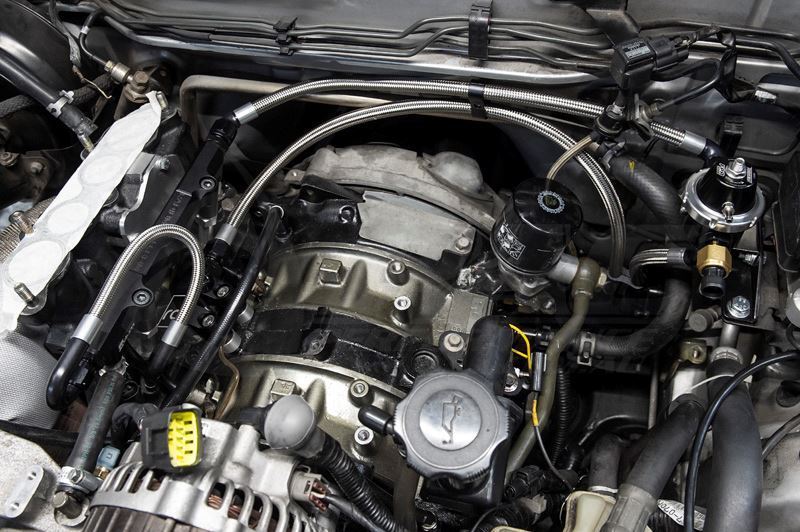

High-quality Speedflow 550 Series press fittings and Teflon-lined stainless braid with billet line spacers & 3-way distribution block, flex sensor kit, Billet By Pac 30-micron Inline Fuel Filter, Turbosmart FPR-2000 Fuel Pressure Regulator, Radium Billet Fuel Rail Kit & genuine Bosch 2000cc injectors... All lines pre-crimped, ready to screw on, rails & injectors pre-assembled and ready to drop in, with the whole lot labelled and accompanied by a printable, online instruction manual with reference photos. We couldn't make the instal any easier if we tried!

Whether you're simply looking to upgrade your fuel system and switch to E85 or if you're combining this upgrade with our popular FD Single Turbo Conversion, this fuel system package has got you covered and it's future proof, with the ability to easily upgrade your pumps at a later date if required. We also offer the option of upgrading your package to a six injector kit to be used with either an Elite or Xcessive lower intake manifold - see options tab

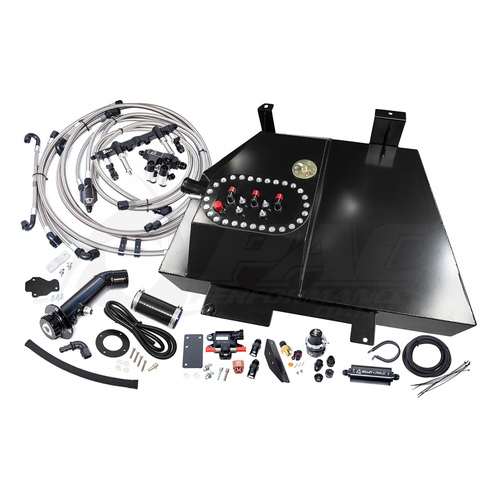

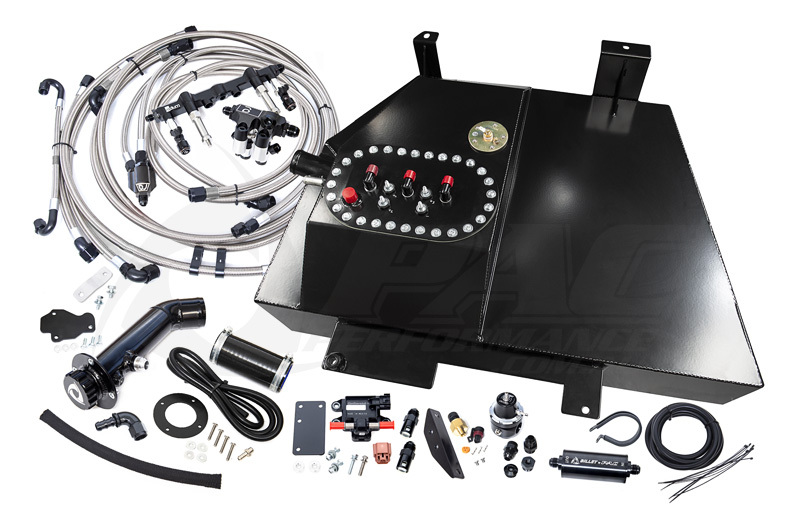

What's Included:

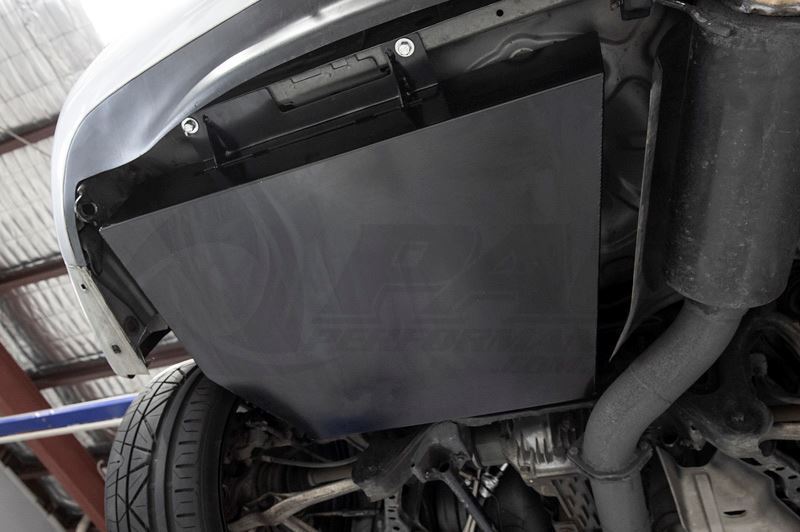

- FD RX7 Fuel Tank - Pre-assembled With Cradle, Pumps & New Fuel Level Sender

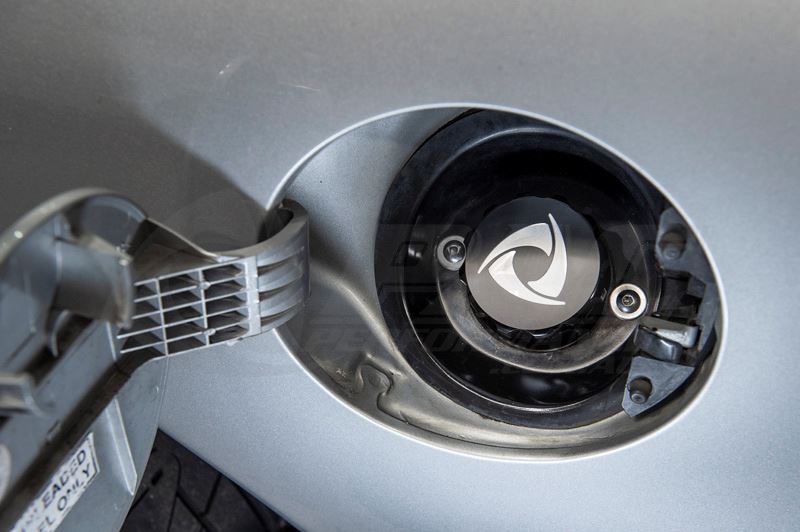

- FD RX7 Fuel Filler Neck kit With Return Line & AN10 Fitting

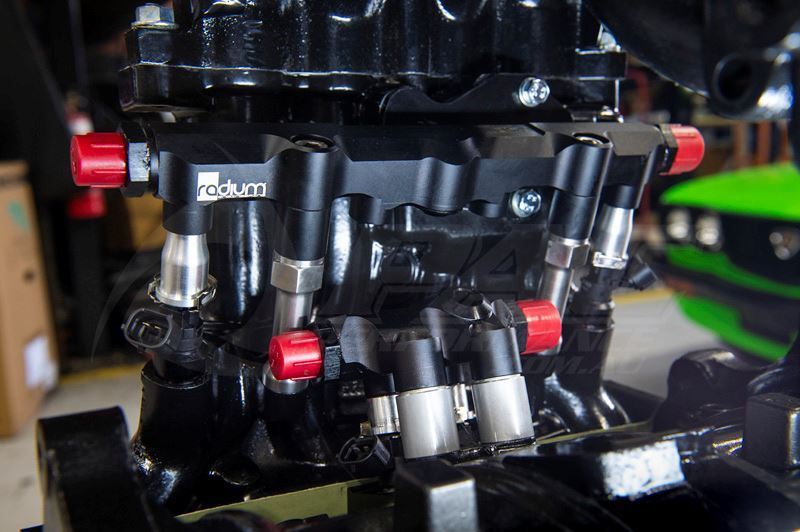

- Radium FD Billet Fuel Rail Kit
- 4x Bosch 2000cc Injectors With Spacers & Cups

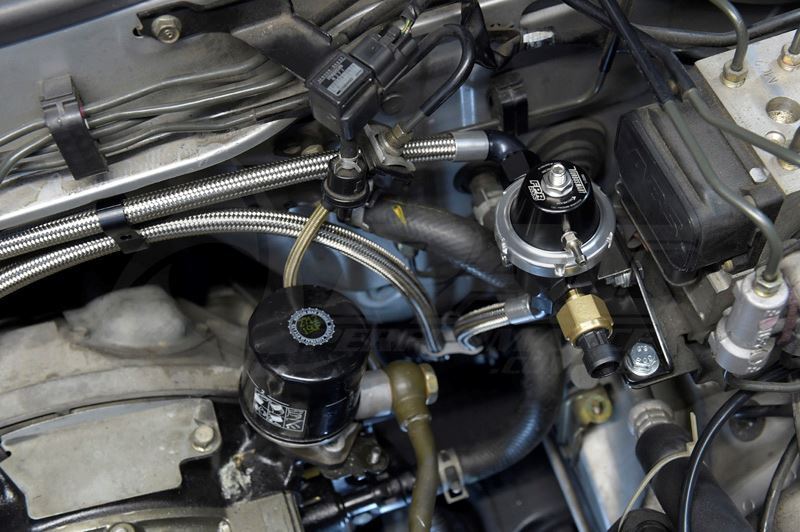

- Turbosmart FPR2000 Fuel Reg & Mounting Bracket

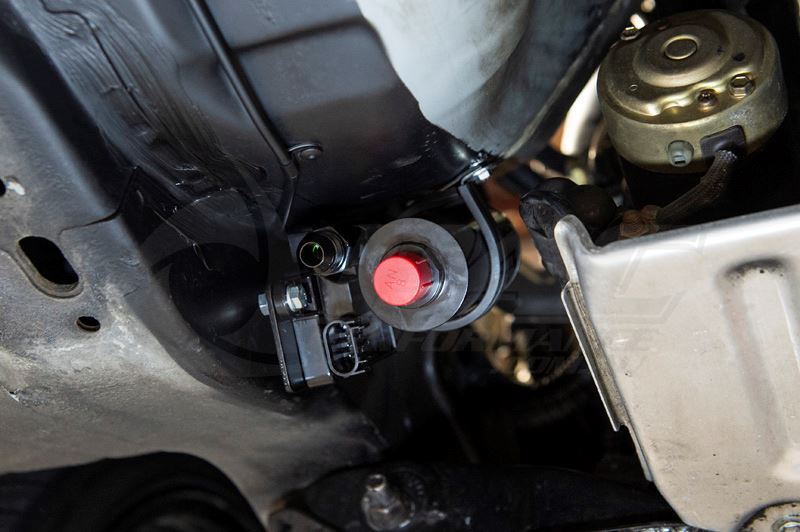

- Flex Fuel Sensor Kit & Mounting Bracket
- Billet By Pac 30-micron Fuel Filter & Bracket

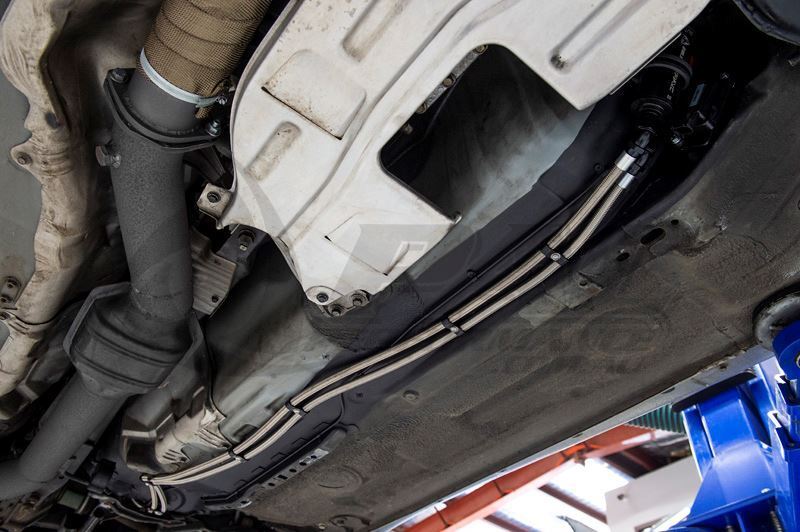

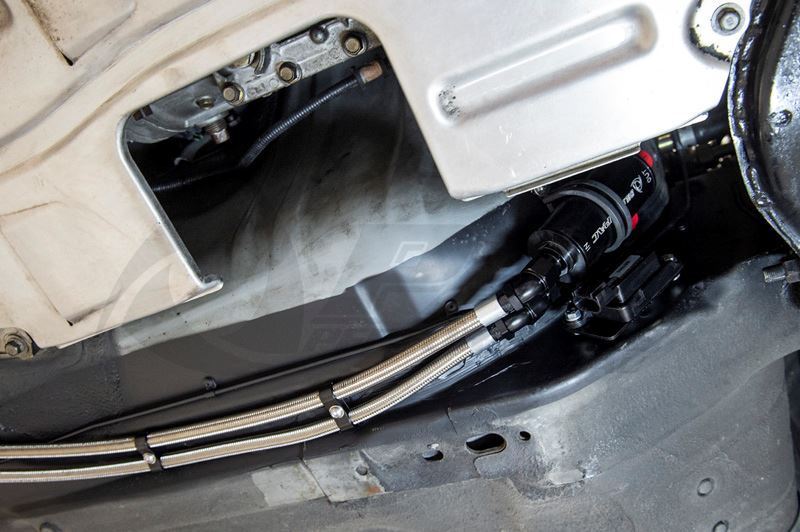

- Speedflow Stainless Braided Hose Hose & 550-Series pressed Fittings
- Billet Hose Mounts
- 3-Way Distribution Block & Mount
- ACV Block-Off Kit
- Vacuum Line & Cable Ties
- Various Mounting Hardware

Applications:

- FD RX7 Series 6-8 1992-2002
