323 GLC PERFORMANCE STRUT & 9" BRAKE PACKAGE

Want to slam your ride over a set of factory 13" steelies or small alloys whilst still retaining good drivability & ride comfort, combined with an impressive boost in braking performance? If you answered 'YES', then this is the combo for you!

The ultimate, direct bolt-in strut & brake combo for your RWD 323 GLC for those wanting to run wheels 14" and smaller, including factory 13" steel wheels, this Performance Strut & 9" Brake Package is comprised of high quality, proven components to deliver an amazing ride and braking performance.

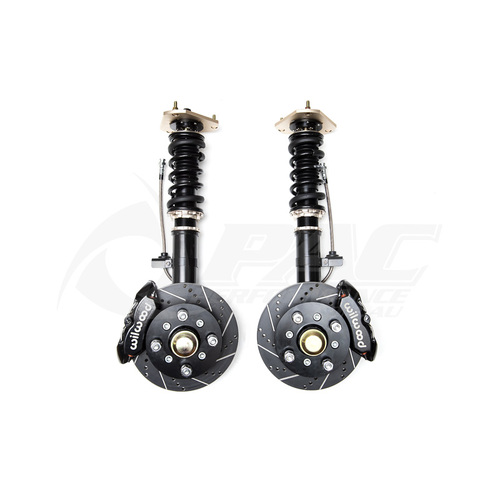

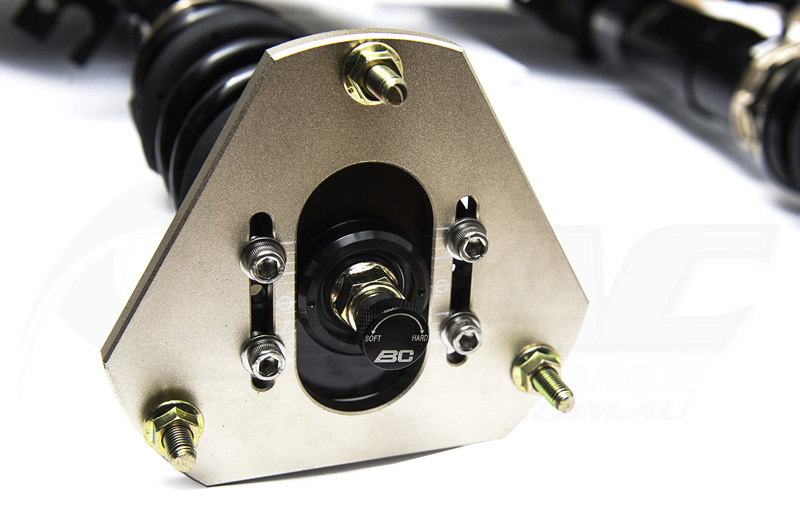

Each package is built around a pair of BC Racing BR Type RA series adjustable coilover struts, featuring 30 levels of damping force adjustment, camber adjustable strut tops and pillowball upper mounts combined with full-length height adjustment that make setting ride height a breeze.

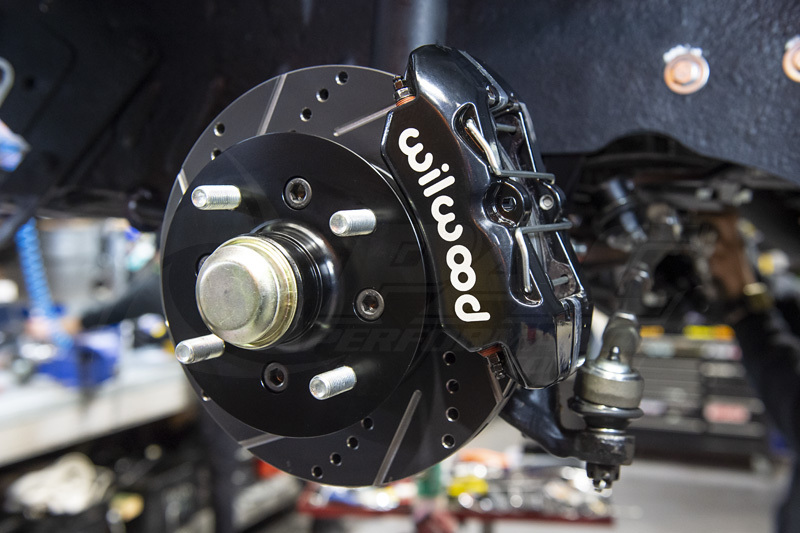

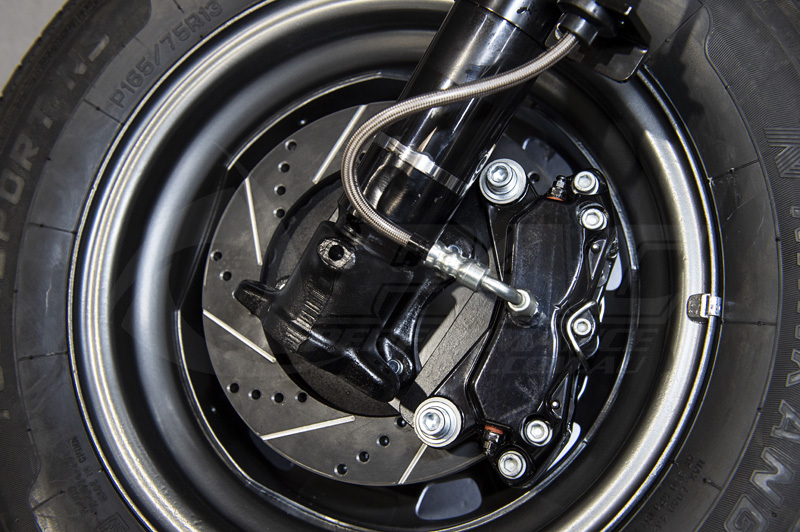

Completing the package is our new 9" 'Mini-Me' Brake Kit, featuring Wilwood 4 Piston dust-boot calipers, light-weight billet hubs, custom 9" drilled & slotted rotors & CNC machined, 1-piece caliper brackets, this kit offers awesome braking performance while still providing ample clearance with a wide variety of rims.

All of our brake kits are fully engineer-approved and street-legal. ADR approved braided brake lines also available to suit - See Extras tab.

**Please Note - At this stage these package is only available on an exchange basis. The customer must supply standard struts so we can use the OEM stub axle to complete the kit. Please allow 3-5 working days for assembly & packaging

Get the most from your new brake upgrade by matching it with the correct master cylinder

While piecing together this awesome brake kit we tested numerous brake master cylinder & booster combos to find the setup best suited to the application to ensure optimum performance. To get the most from your upgrade and ensure correct operation as intended, we highly recommend installing one of our Remote Res Brake Master Cylinders*  - See extras tab

Key Features:

Struts:

- 30 Level Damping Force Adjustment

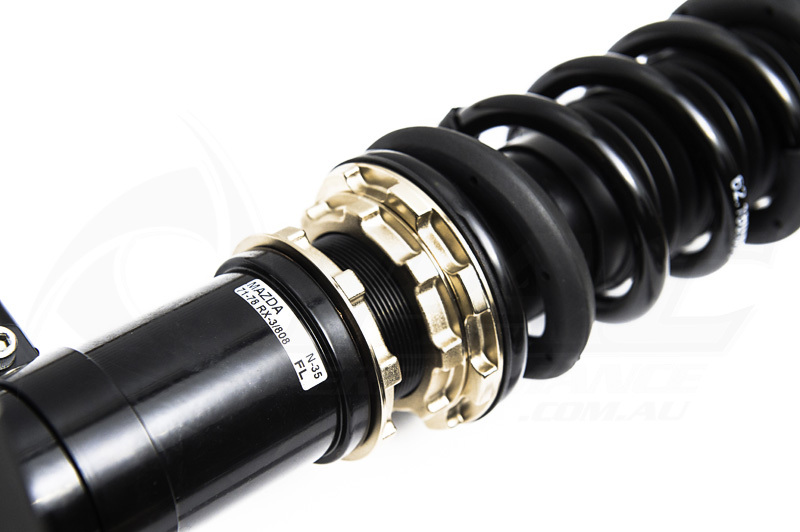

- Height Adjustment System
- Enlarged Cylinder & Newly Developed Piston
- Anodized Alloy Casing
- CNC Machined
- T6061 Alloy Locking Ring
- SAE9254 Steel Racing Springs
- Monotube Design For Maximum Performance
- Fully Rebuildable

Brakes:

- Custom light-weight billet hubs (Factory Mazda 4x110PCD)

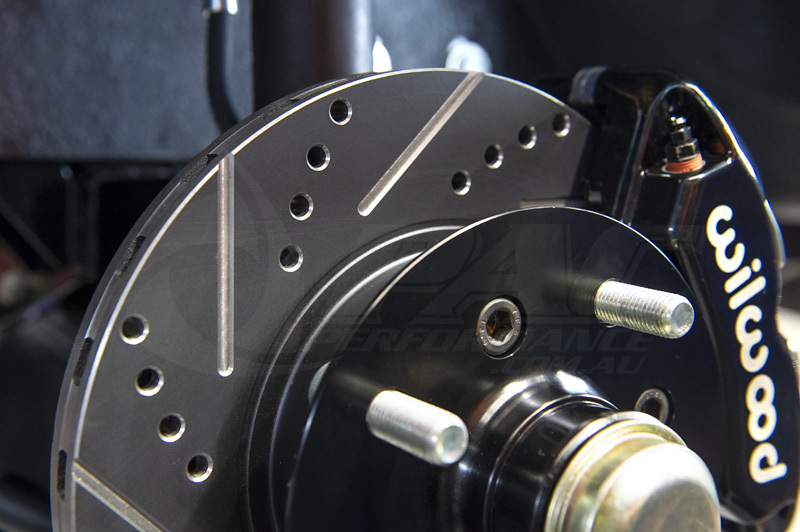

- 9 Inch (228mm) Ventilated Rotors, Cross-Drilled & Slotted
- Dust boot Wilwood 4-piston Calipers
- CNC-Machined 1-Piece Caliper Brackets
- Wilwood High-Performance Brake Pads
- Quality Japanese Wheel Bearings (Packed & Loaded) & Hub Seals
- Bearing Caps
- Rubber Brake Lines (braided upgrade available)
- Factory Wheel Cap Rubbers (x2)
- New rubber brake lines (Braided Lines also available - see extras tab)

Applications:

- 323 GLC Hatch & Wagon

Packages available for other models HERE

*Please note: The performance of this brake upgrade relies heavily on having the correct brake master cylinder installed - See above. Failing this, Pac Performance cannot guarantee the product will perform as intended.
